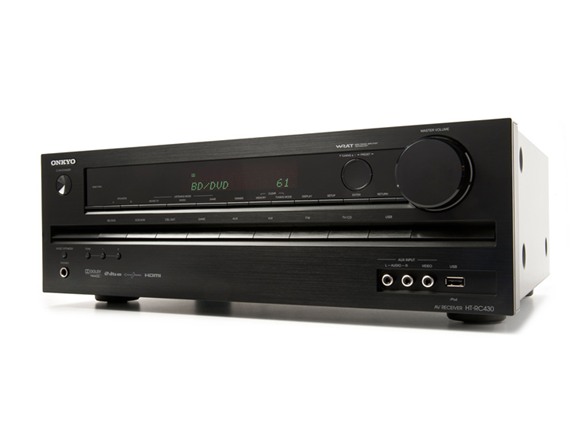

Onkyo HT-RC430 5.1-Channel 3D Ready A/V Receiver

New
Limit 3 per customer
You missed it! But Today's Woot is waiting!
add to cart

Last Stop Before Clarksville

This Onkyo 5.1CH 3D Ready A/V Receiver is EXACTLY what you need to break up the dark loneliness of your life. It'll love you more than you'll love it.

Boy, when I was being assembled in the Onkyo factory, I heard all the fairytales about how an audio component could just one day see a face in the crowd and fall in love, but I never believed it. Not until today. That's right, I'm talking to you, stranger. How you doin'?

Until just moments ago, I figured Cupid was out to get me. Silly, right? But that's how it felt! Every night I'd sit in my shipping box, so disappointed, assuming that no one would ever enjoy my many surround sound decoders or my 4 HDMI inputs, let alone my A/B switching skills.

Oh, hey, and that's not all! I got lots to give! AM/FM tuner with 40 presets, front USB port, four DSP gaming modes, the works! But the more I gave, it seemed, the less other people were willing to give back. I had the same HDMI input as anybody, you know? Why did I only get pain? Why did I even try? If I wanted to hear Bill Withers, someone put on Ninja Assassin in. And I can handle music and video, assuming you plug in your own players (they're not included, naturally) but I just got so discouraged! Did no one care?

Then ... I saw your face. Hi. I'm a receiver. And I couldn't leave you if I tried.

Back to top

Features

  • Audio return channel and 3D video via HDMI v1.4
  • Surround sound decoders include Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio for use with Blu-ray
  • Speaker A/B switching lets you switch between 2 sets of speakers to expand your listening environment
  • Advanced Music Optimizer with volume equalization offers a dynamic soundscape
  • Overlaid on-screen display (OSD) makes it easy to set up your receiver
  • AM/FM tuner with 40 station presets lets you program your favorites for simple one-touch recall
  • Front USB port allows you to easily connect your Apple® iPod® or iPhone®, so you can listen to stored tracks
  • 4 HDMI inputs, 1 HDMI output - High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound (HDMI cable not included)
  • Four DSP gaming modes include rock, sports, action and role playing for enhanced realism

Shipping Note: Shipping to Alaska and Hawaii is not available for this item

Warranty: 2 Year Onkyo

Authorized for SquareTrade Extended Warranty



Specs

Amplifier:
Output Power: 60W per channel (20 Hz - 20 kHz, 0.7% THD, 8Ω, 2 Channel Driven, FTC)
90W per channel (1 kHz, 0.9% THD @ 6Ω, 2 Channel Driven, FTC)
Dynamic Power: 160W (3Ω, front)
125W (4Ω, front)
85W (8Ω, front)
THD+N: 0.08% (20 Hz - 20 kHz, half power)
Damping Factor: 60 (front, 1 kHz, 8Ω)
Input Sensitivity & Impedance (unbalance): 200 mV/47kΩ (LINE)
Rated RCA Output Level & Impedance: 200 mV/2.2kΩ (REC OUT)
Max RCA Output Level & Impedance: 2V/2.2kΩ (REC OUT)
Frequency Response: 5 Hz - 100 kHz / +1 dB, -3 dB (DSP bypass)
Tone Control Characteristics: ±10 dB, 50 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio: 100 dB (LINE, IHF-A)
Speaker Impedance: 6Ω - 16Ω
Number of Channels: 5.1
Video:
Input Sensitivity / Output Level & Impedance: 1 Vp-p/75Ω (Component Y)
0.7 Vp-p/75Ω (Component PB/CB, PR/CR)
1 Vp-p/75Ω (Composite)
Component Video Frequency Range: 5 Hz - 100 MHz / +0 dB, -3 dB
Tuner:
FM Tuning Frequency Range: 87.5 MHz - 107.9 MHz
AM Tuning Frequency Range: 530 kHz - 1710 kHz
Preset Channels: 40

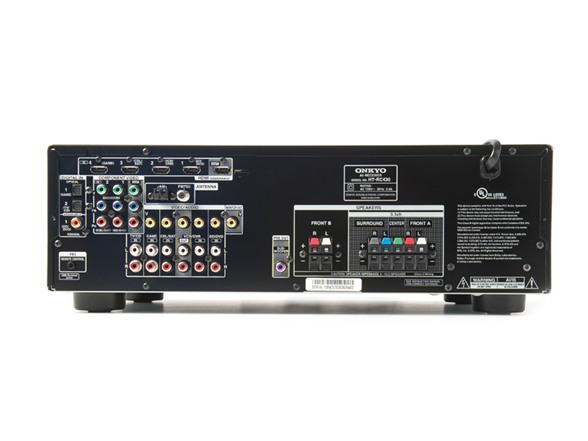

Connectors:
Inputs: (4) HDMI v1.4 (assignable)
(2) Component Video
(5) Composite (1 front)
(6) Audio (1 front)
(2) Digital Optical
(1) Digital Coaxial
Outputs: (1) HDMI
(1) Component Video
(2) Composite
(1) Monitor Composite
(1) Audio
(5) Speaker (L/R)
(1) Front B (L/R)
(1) Subwoofer Pre-out
(1) Headphones
Other Ports: (1) Front Panel USB Input
(1) RI Remote Control
Audio Processing:
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
DTS-HD Master Audio: Yes
Onkyo Game Surround Modes: Yes
Direct Mode: Yes
Advanced Music Optimizer: Yes
DAC: 192 kHz / 24-bit
General:
Power Supply: AC 120V, 60 Hz
Power Consumption: 3.4 A
No-sound Power Consumption: 40W
Stand-by Power Consumption: 0.2W
Dimensions: 17.13"(W) x 5.88"(H) x 12.5"(D)
Weight: 16.8 lbs

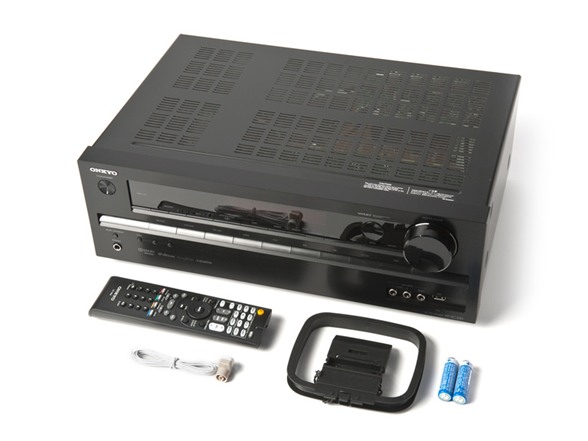

In the box:

  • Onkyo HT-RC430 5.1-Channel 3D Ready A/V Receiver
  • Remote Control
  • AM Loop Antenna
  • FM Antenna
  • Batteries for Remote
