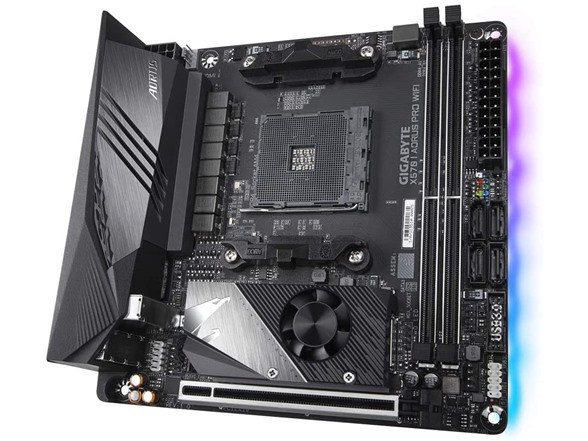

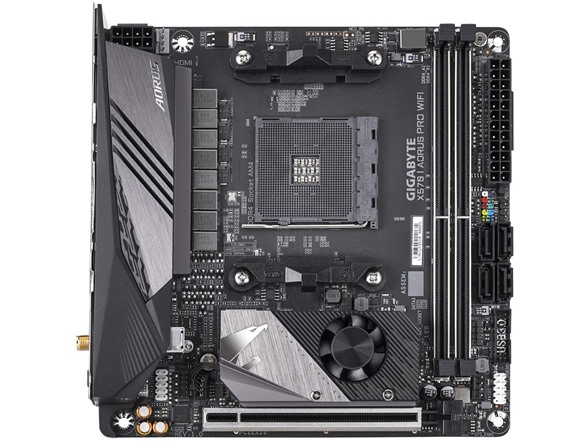

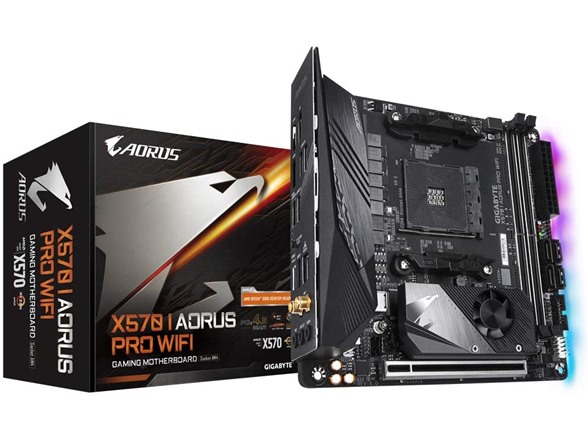

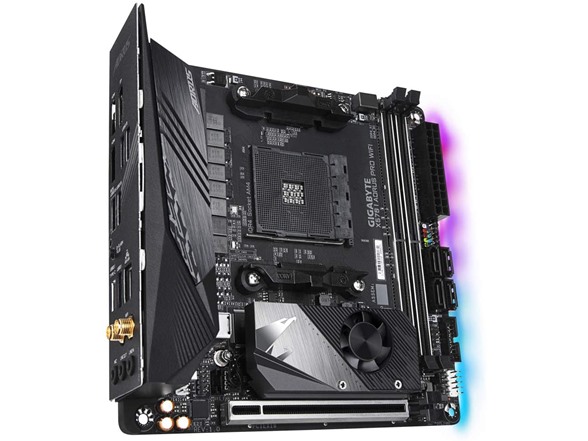

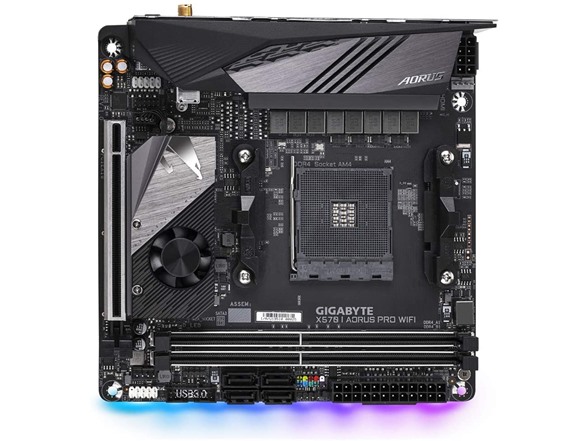

GIGABYTE X570 AORUS PRO WIFI Motherboard | CPU Socket AM4 | AMD X570 | ATX form factor | up to 128GB DDR4-SDRAM supported

Condition New

Quantity Limit 3 per customer

Sold Out

Want more great deals? Sign up for our Daily Digest emails!

Features

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

Features:

AMD X570 AORUS Motherboard with 12+2 Phases IR Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Dual PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, Intel® GbE LAN with cFosSpeed, USB Type-C, RGB Fusion 2.0
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases IR Digital VRM Solution with Power Stage
Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
Intel® WiFi 6 802.11ax 2T2R & BT 5
ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
Intel® Gigabit LAN with cFosSpeed Internet Accelerator Networking
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Front & Rear USB 3.2 Gen2 Type-C™ Header & HDMI 2.0 support
Integrated I/O Shield Armor
Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

Shipping Note: Shipping to Alaska and Hawaii is not available for this item. A physical address is required for delivery. No Military or PO Box shipments available.

Warranty: 90 Day Woot Limited Warranty

Specs

Specifications

CPU Socket

AM4 Socket

CPU Support

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors

Chipset

AMD X570

Form Factor

ATX

DDR4 Memory Support

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

PCIe x16 Slots

Integrated in the CPU (PCIEX16/PCIEX8):

AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4/PCIEX1):

1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)

2 x PCI Express x1 slots, supporting PCIe 4.0/3.0

Storage

Integrated in the CPU (M2A_SOCKET):
AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Back I/O Ports

2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2/Gen 1 Type-A port (red)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

Item model number

X570 AORUS PRO WIFI

Manufacturer

GIGABYTE

Dimensions

30.5cm x 24.4cm

Operating System

Support for Windows 10 64-bit

Additional information here.

In the Box:

(1) GIGABYTE B450 AORUS Pro Wi-Fi Motherboard
