Features

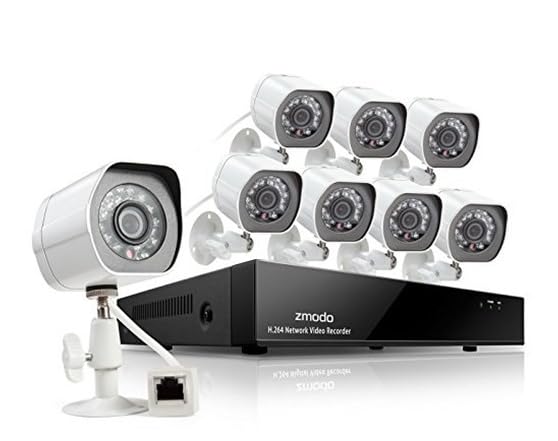

This all-in-one, eight-channel NVR kit connects with eight outdoor 720P cameras and sets up in just minutes. You don't need to know the specifics about computers or networks because we've made the set-up even simpler. sPoE IP cameras transmit both power and video using the same network cable, which means you only need to connect one cable to each camera. Simply plug in the NVR, connect the cameras to the NVR with the provided cables, and your system will automatically begin recording video.
Connect the NVR to a monitor with your own VGA cable and experience the redesigned, user friendly interface. With the latest version of our app, Zsight, you can also enjoy easy monitoring and control of your system on your smartphone or tablet. Connecting your new system to your Android or iOS device couldn't be simpler with Zsight's built in QR code scan. Simply create a Zsight account and add the device by scanning the QR code printed on the device. Now you're ready to enjoy peace of mind at home and remotely!
Power over Ethernet
A single network cable directly connects each IP camera to the NVR, supplying both power and a video signal.
Quick Remote Access
Connect your tablet or Smartphone to your IP cameras or NVR with our app Zsight, available for both Android and iOS devices.
720P HD Real-Time
Capture high-definition 720P HD video, three times higher resolution than standard analog cameras.
Day and night monitoring with IR-cut switch

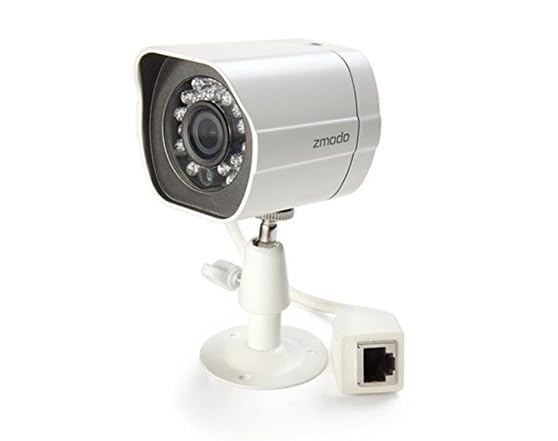

Each IP camera houses 24 premium IR LEDs inside of it and is capable of recording up to 65 feet away in total darkness to provide protection day or night. The IR-cut filter ensures extremely clear HD viewing and recording in all lighting conditions. Enjoy crisp, clear, color images in daytime, and equally good gray-scale images at night.
These cameras are equipped with a fixed 2.8mm wide-angle lens, which provides a 81 degree field of vision to cover more area. With the four cameras strategically placed, you can easily cover the whole of your home or shop.
Weatherproof metal for indoors and outdoors
The cameras are encased in weatherproof aluminium metal, rated IP 65, ensuring that they can withstand prolonged outdoor exposure in typical adverse conditions. If installing outside, please mount the cameras in a sheltered location and seal all cable ends in a conduit box.
The versatile 3-axis mounting brackets allow each IP camera to be mounted on just about any surface. With screw holes on both the top and bottom of the camera, mounting to vertical walls and horizontal ceilings and ledges is a breeze.
Motion Detection and Multitasking
Motion detection can be turned on or off for specific cameras, or you can define the motion sensing area for more precision. Set up the NVR to send email alerts with an attached snapshot when a motion event occurs, and get peace of mind while still catching every essential moment.
You no longer have to choose between continuous or motion recording. This NVR includes a normal recording mode and a new intelligent recording. The new intelligent recording manages disc space by detecting motion events and only using the necessary space needed for recording.
Revolutionary Improvements
The new P2P technology allows you to access your system anytime from anyplace. We've made it even easier to connect your system to your smartphone or tablet! Our in-app QR code scan allows you to scan the code printed on the NVR to instantly add it to your Zsight account, giving you the perfect way to access and control your system on the go!
Huge changes have been made to the new GUI (Graphical User Interface) on the NVR. Easy to use, this new GUI eliminates complicated and time consuming multi-step procedures in the system configuration process.
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 1 Year Zmodo
Specs
| Video Input/Output: | |
|---|---|
| IP video input | 8 channel IP camera inputs |
| VGA output | 1 channel |
| HDMI output | 1 channel |
| Recording resolution | 720P |
| Compression | H.264 |
| Record rate | 200fps |
| Multi screen display | 1024×768@60Hz, 1280×1024@60Hz, 1920×1080@60Hz, 1280×720@60Hz |
| Record Mode | Normal Recording / Intelligent Recording (Motion Detected & External Alarm I/O Triggered Recording Pre-Enabled in Both) |
| Playback | Fast forward / Rewind / Slow play |
| Audio Input/Output: | |
|---|---|
| Audio compression | G.711 |
| Audio output | 1 channel |
| Hard Disk Drive: | |
|---|---|
| Interface type | 1 SATA (3.5") |
| Capacity | Up to 4TB (Choose: No HDD or 1TB HDD) |
| External Interface: | |
|---|---|
| Network interface | 1 RJ45 10M/ 100M self-adaption & 8 independent 10/ 100 Mbps ethernet interfaces |
| USB interface | 2 USB 2.0 interfaces |
| Alarm inputs / output | 4 channel sensor inputs / 1 channel alarm output |
| General: | |
|---|---|
| Application support | Remote configuration, video browse, local recording, local and remote playback |
| Motion detection | Yes |
| Protocol support | TCP / IP, UDP, DNS / DDNS, SMTP,UPNP, DHCP, HTTP, & P2P |
| Alarm | Support remote notification |
| Smart phone | iOS 6.0 up, Android 2.3 up |
| Power supply | DC19V, 4A |
| sPoE ports | 8 |
| Power consumption | <20W (Without hard disks) |
| Operating temperature | 32°F~104°F / 0°C~40°C |
| Dimensions | 290 × 231 × 43mm (11.4" × 9.1" × 1.7") |
| Weight | 2.29lbs |
| Language | 11 languages (Chinese * English * Czech * Japanese * German * Russian * Spanish * French * Italian * Portuguese * Arabic) |
| Cameras: | |
|---|---|
| Image sensor | 720P color sensor |
| Min. illumination | 0.1Lux (IR LED On) / F 1.2 |
| Shutter speed | Auto |
| Lens | 2.8mm |
| Angle of view (diagonal) | 81 degree |
| IR distance | Night visibility up to 20m |
| Day & night | Electronic (IR-CUT filter with auto switch) |
| Compression Standard: | |
|---|---|
| Video compression | H.264 |
| Bit rate | 16Kbps~2Mbps |
| Dual stream | Yes |
| Image: | |
|---|---|
| Image resolution | 720P (1280*720) , VGA (640*480) , QVGA (320*240) |
| Frame rate | 25fps |
| White balance | Auto |
| Backlight balance | Auto |
| Image setting | Brightness, contrast, saturation |
| Network: | |
|---|---|
| Alarm trigger | Intelligent motion detection |
| Alarm action | E-mail alarm, video record |
| Network protocols | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, and P2P |
| ONVIF | ONVIF Ver.2.0 |
| Security | User authentication, software encryption |
| Interface: | |
|---|---|
| Communication interface | RJ45 10 / 100M self-adaptive |
| General: | |
|---|---|
| User management | Multi-lever user management, support up to 16 users |
| Weather proof | IP65 |
| Operating temperature | 14°F~122°F / −10 °C to 50 °C |
| Color / Material | White /Aluminum |
| Powered by | simplified Power over Ethernet |
| Power consumption | 2W~4W |
| Weight | 0.794lbs |
| PC Monitor: | |
|---|---|
| Windows | XP / Win7 |
| IE | 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win 8 |
| Mobile Monitor: | |
|---|---|
| APP | Zsight |
| Android support | 2.3 up |
| iOS support | 6 up |
In the box:
- 1) 8 Channel Security NVR(ZP-NC18-S)
- 8) 720P Bullet IP Network Camera(ZP-IBH15-S1)
- 1) 19V 4A Power Adapter
- 1) 1M(3ft) CAT5e Network Cable
- 2) 15M(50ft) Camera Cables
- 4) 25M(80ft) Camera Cables
- 2) 30M(98ft) Camera Cables
- 1) USB Mouse
Specs
| Video Input/Output: | |
|---|---|
| IP video input | 8 channel IP camera inputs |
| VGA output | 1 channel |
| HDMI output | 1 channel |
| Recording resolution | 720P |
| Compression | H.264 |
| Record rate | 200fps |
| Multi screen display | 1024×768@60Hz, 1280×1024@60Hz, 1920×1080@60Hz, 1280×720@60Hz |
| Record Mode | Normal Recording / Intelligent Recording (Motion Detected & External Alarm I/O Triggered Recording Pre-Enabled in Both) |
| Playback | Fast forward / Rewind / Slow play |
| Audio Input/Output: | |
|---|---|
| Audio compression | G.711 |
| Audio output | 1 channel |
| Hard Disk Drive: | |
|---|---|
| Interface type | 1 SATA (3.5") |
| Capacity | Up to 4TB (Choose: No HDD or 1TB HDD) |
| External Interface: | |
|---|---|
| Network interface | 1 RJ45 10M/ 100M self-adaption & 8 independent 10/ 100 Mbps ethernet interfaces |
| USB interface | 2 USB 2.0 interfaces |
| Alarm inputs / output | 4 channel sensor inputs / 1 channel alarm output |
| General: | |
|---|---|
| Application support | Remote configuration, video browse, local recording, local and remote playback |
| Motion detection | Yes |
| Protocol support | TCP / IP, UDP, DNS / DDNS, SMTP,UPNP, DHCP, HTTP, & P2P |
| Alarm | Support remote notification |
| Smart phone | iOS 6.0 up, Android 2.3 up |
| Power supply | DC19V, 4A |
| sPoE ports | 8 |
| Power consumption | <20W (Without hard disks) |
| Operating temperature | 32°F~104°F / 0°C~40°C |
| Dimensions | 290 × 231 × 43mm (11.4" × 9.1" × 1.7") |
| Weight | 2.29lbs |
| Language | 11 languages (Chinese * English * Czech * Japanese * German * Russian * Spanish * French * Italian * Portuguese * Arabic) |
| Cameras: | |
|---|---|
| Image sensor | 720P color sensor |
| Min. illumination | 0.1Lux (IR LED On) / F 1.2 |
| Shutter speed | Auto |
| Lens | 2.8mm |
| Angle of view (diagonal) | 81 degree |
| IR distance | Night visibility up to 20m |
| Day & night | Electronic (IR-CUT filter with auto switch) |
| Compression Standard: | |
|---|---|
| Video compression | H.264 |
| Bit rate | 16Kbps~2Mbps |
| Dual stream | Yes |
| Image: | |
|---|---|
| Image resolution | 720P (1280*720) , VGA (640*480) , QVGA (320*240) |
| Frame rate | 25fps |
| White balance | Auto |
| Backlight balance | Auto |
| Image setting | Brightness, contrast, saturation |
| Network: | |
|---|---|
| Alarm trigger | Intelligent motion detection |
| Alarm action | E-mail alarm, video record |
| Network protocols | TCP/IP, UDP, DNS/ DDNS, SMTP, UPNP, DHCP, HTTP, and P2P |
| ONVIF | ONVIF Ver.2.0 |
| Security | User authentication, software encryption |
| Interface: | |
|---|---|
| Communication interface | RJ45 10 / 100M self-adaptive |
| General: | |
|---|---|
| User management | Multi-lever user management, support up to 16 users |
| Weather proof | IP65 |
| Operating temperature | 14°F~122°F / −10 °C to 50 °C |
| Color / Material | White /Aluminum |
| Powered by | simplified Power over Ethernet |
| Power consumption | 2W~4W |
| Weight | 0.794lbs |
| PC Monitor: | |
|---|---|
| Windows | XP / Win7 |
| IE | 7.0 / 8.0 / 9.0 / 10.0 / 11.0, Please use IE 7.0 / 8.0 /9.0 for Win 8 |
| Mobile Monitor: | |
|---|---|
| APP | Zsight |
| Android support | 2.3 up |
| iOS support | 6 up |
In the box:
- 1) 8 Channel Security NVR(ZP-NC18-S)
- 8) 720P Bullet IP Network Camera(ZP-IBH15-S1)
- 1) 19V 4A Power Adapter
- 1) 1M(3ft) CAT5e Network Cable
- 2) 15M(50ft) Camera Cables
- 4) 25M(80ft) Camera Cables
- 2) 30M(98ft) Camera Cables
- 1) USB Mouse
